Image Hotspot Creator

In this article you will learn,

Overview

Requirements

How does the app work?

Where it can be used?

End-User License Agreement

Code documentation

Overview

Hotspot : A hotspot is a region in a picture that has to be highlighted clearly.

Multiple hotspots may be created in a picture by editors using the Hotspot Creator widget. Simply click and drag on the image to place a hotspot where users want it.

It will be simpler to use this Hotspot maker if there is a picture and a section of the picture that has to be highlighted. The created hotspots can also be edited and deleted after creation.

Requirements

To use this app, user will need:

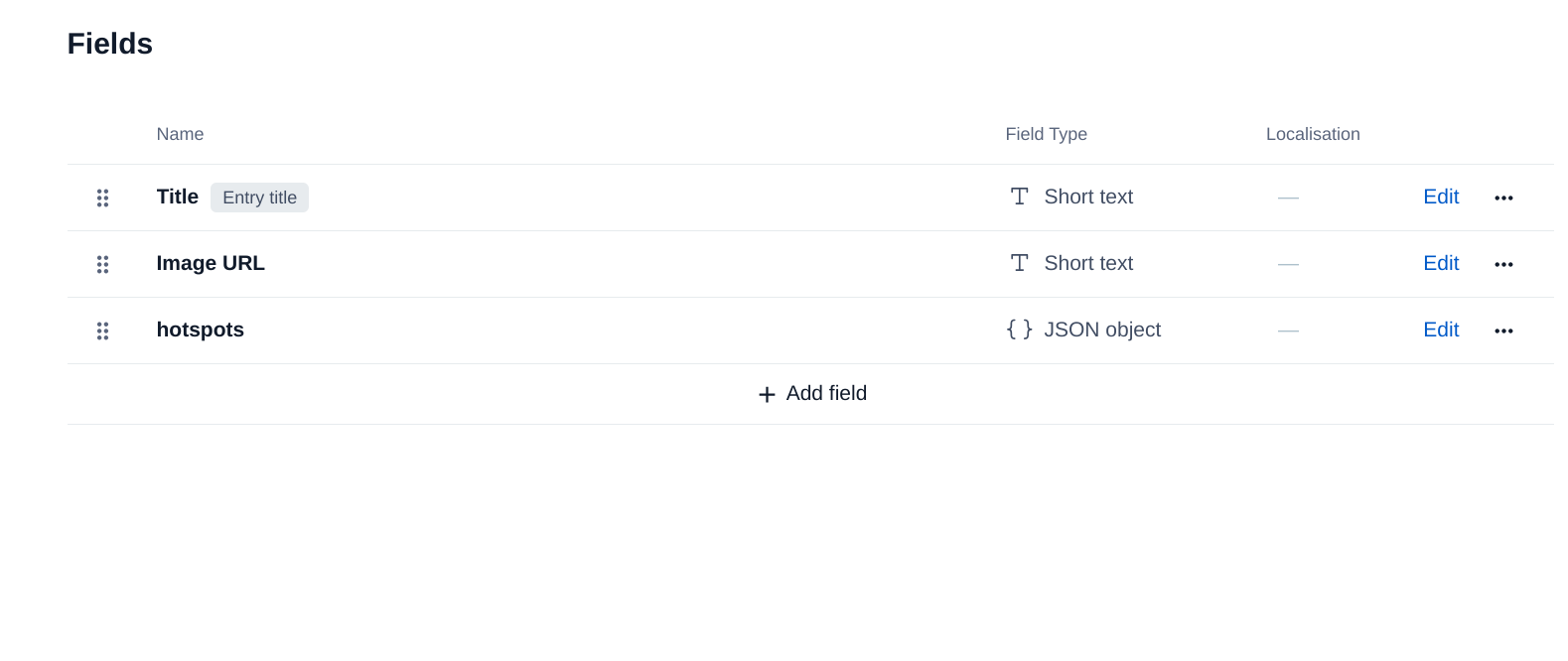

A content type with three fields in it.

A field type of “Short Text” named “Title”.

A field type of “Short Text” named “Image URL”.

A field type of “JSON Object” named “hotspots”.

How does the app work?

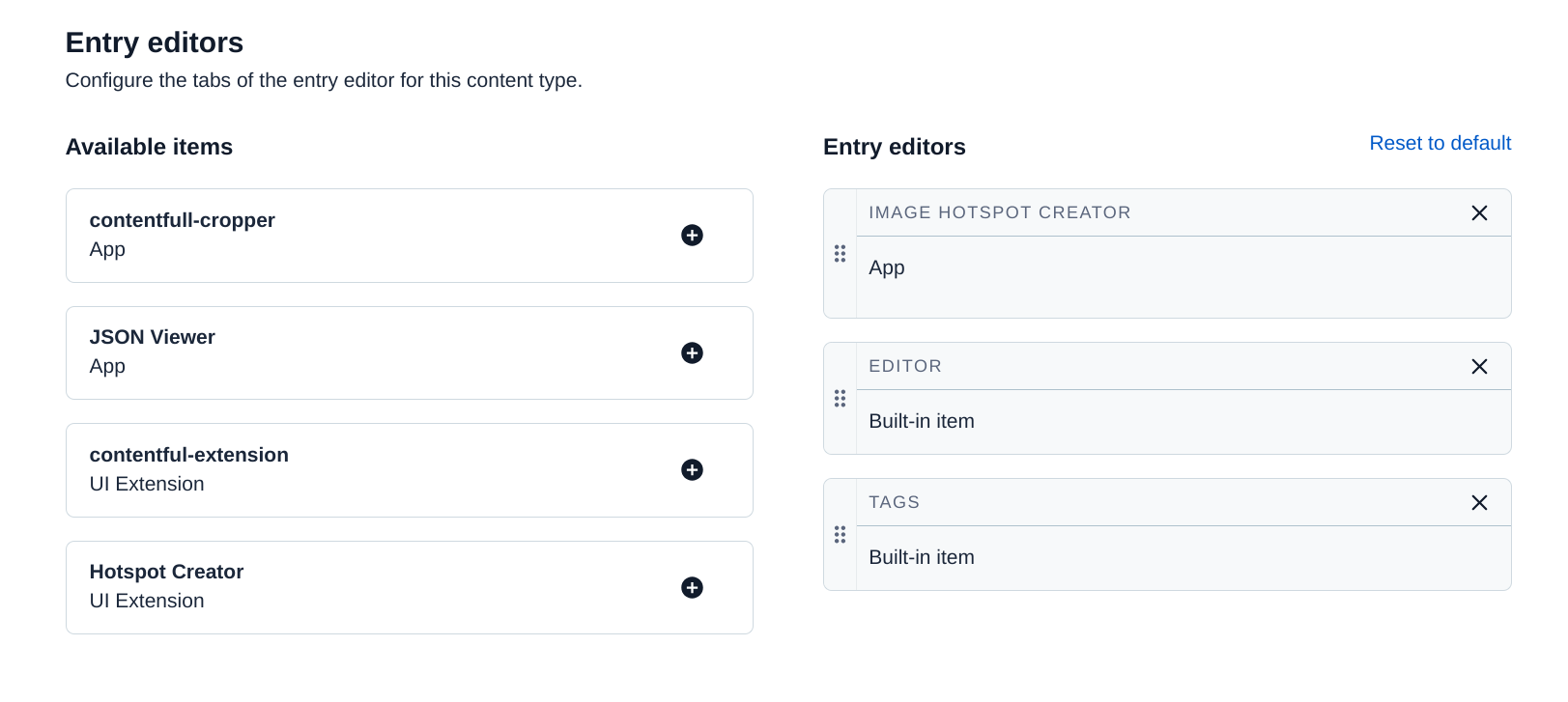

Once the installation of the custom application is completed, go to the content type and add the custom application to the entry editor.

Go to the content section, select the content type that was created, and click the add entry button.

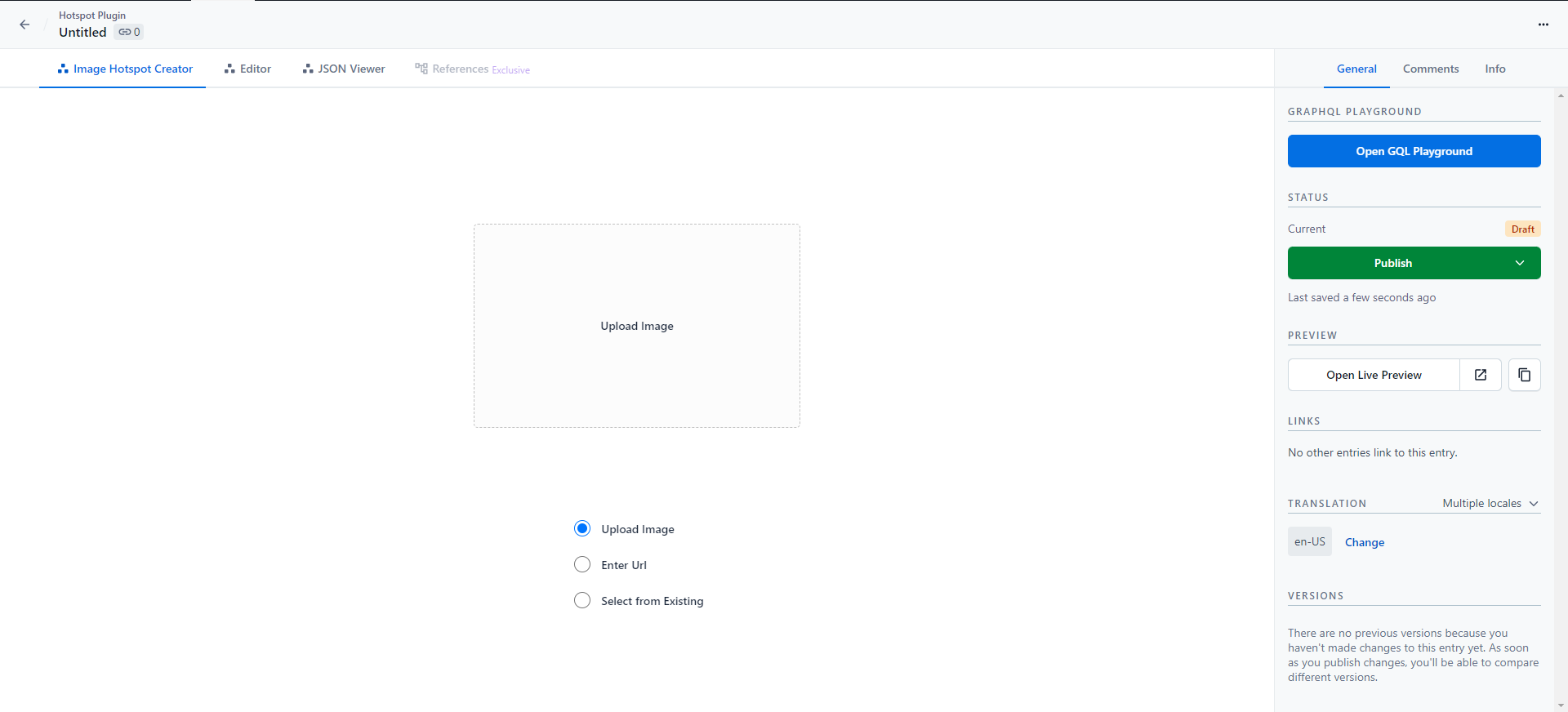

Open the Hotspot Creator in the Entry Editor and upload a new picture or select an existing image from the contentful asset.

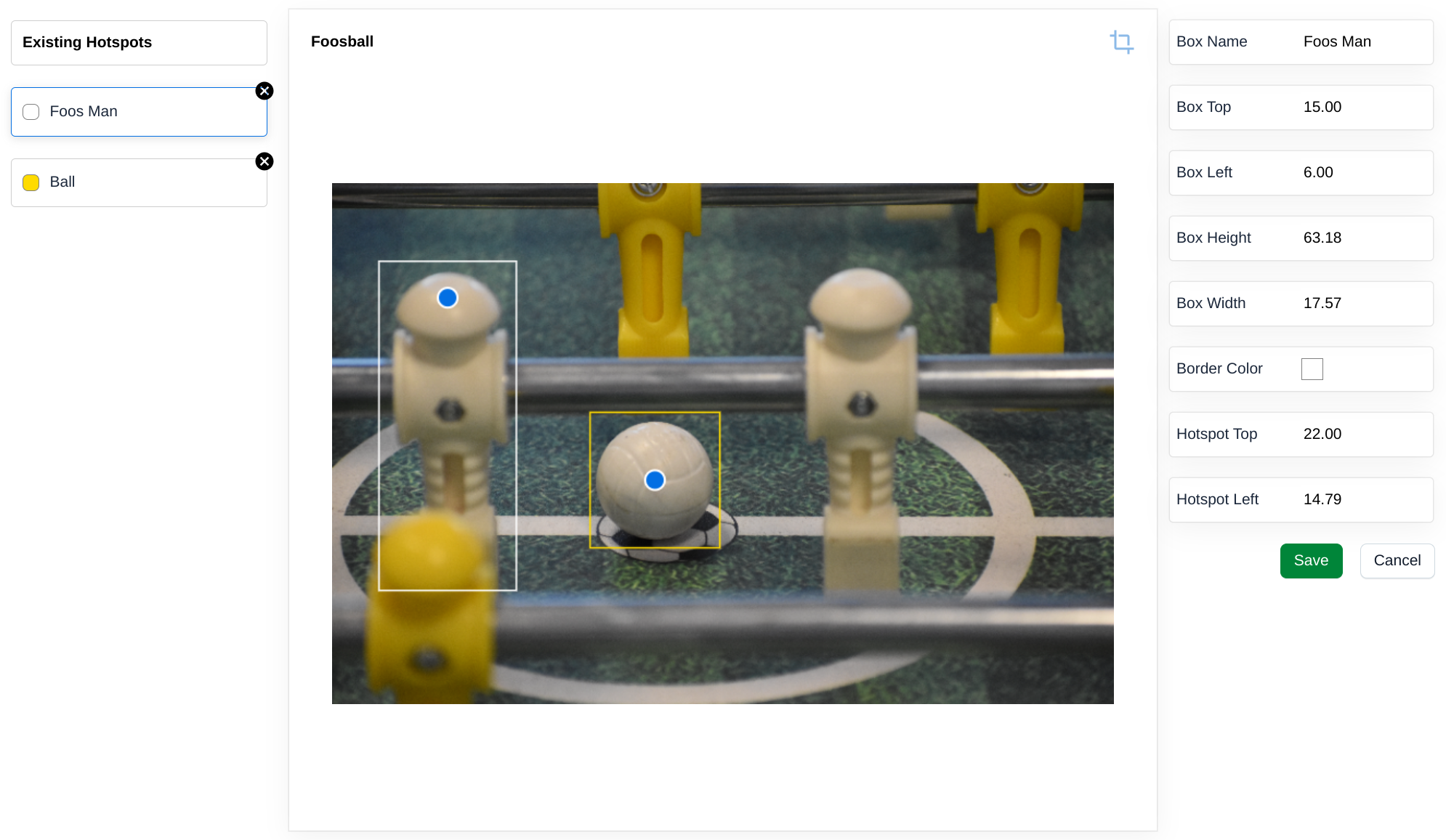

To create hotspots, click the crop icon and drag to select the part of the image that has to be highlighted.

The coordinates are shown on the right side of the image, where changes are made for the created hotspot.

Click save button to save the hotspot or Cancel to remove it.

The Created hotspots are displayed under the Existing hotspot section. It can also be edited by clicking on the Title of the hotspot.

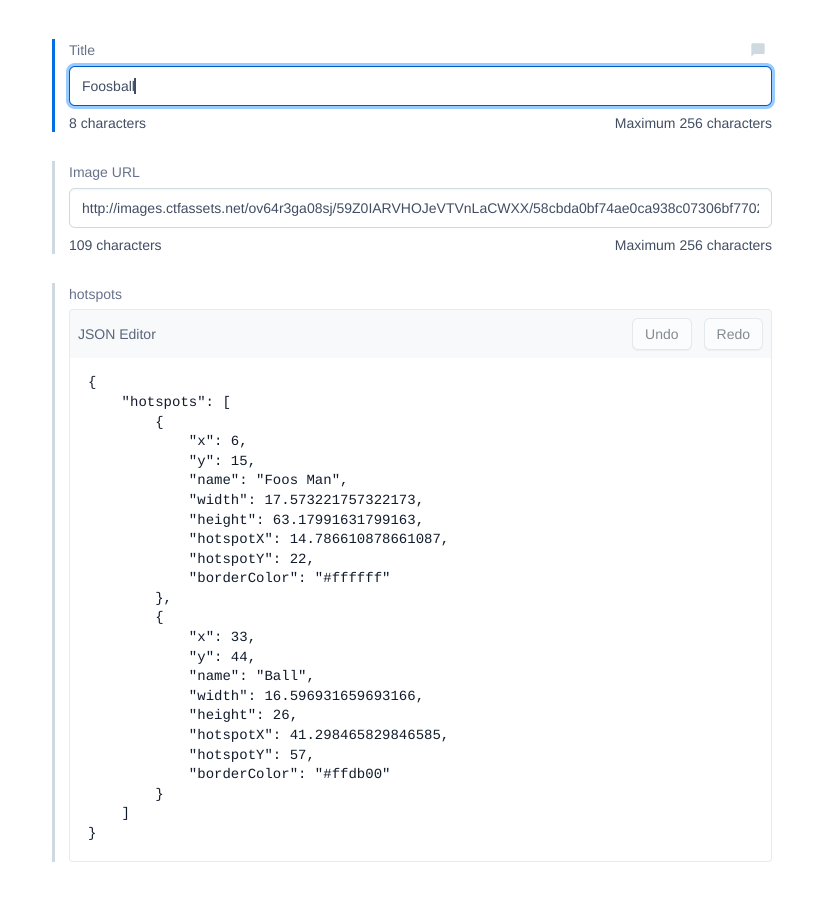

Once the creation is completed move to the Editor of Contentful, and the values are updated in the fields as user created.

The coordinates are,

x - Top of the hotspot

y - Left of the hotspot,

height - Height of the hotspot,

width - Width of the hotspot,

name - Name of the hotspot,

borderColor - Color of the hotspot border,

hotspotX - Top of the point inside the hotspot,

hotspotY - Left of the point inside the hotspot.

These coordinates are stored as an array called hotspots in the json object field.

Where it can be used?

If a particular area in a picture has to be highlighted and an action like redirecting or opening a popup should be taken while clicking or hovering over the particular area, this Image hotspot creator will make it easier to reach the goal by modifying the json object.

Example,

If there is a picture that has a number of people in it, then it can be made as clicking on a person which redirect to his Instagram profile by adding a new key and value for the profile url in the json object and using that url a developer can make it interactive.

If there is a picture that consists of a Table, a chair, a laptop, mobile, etc.There should be a seperate key and value that has the url for every product,with those keys and values developer can make it interactive, When clicking on each object, there should be a popup that does some action, like displaying detailed information of that particular product or redirecting to the shopping page for that particular product.
